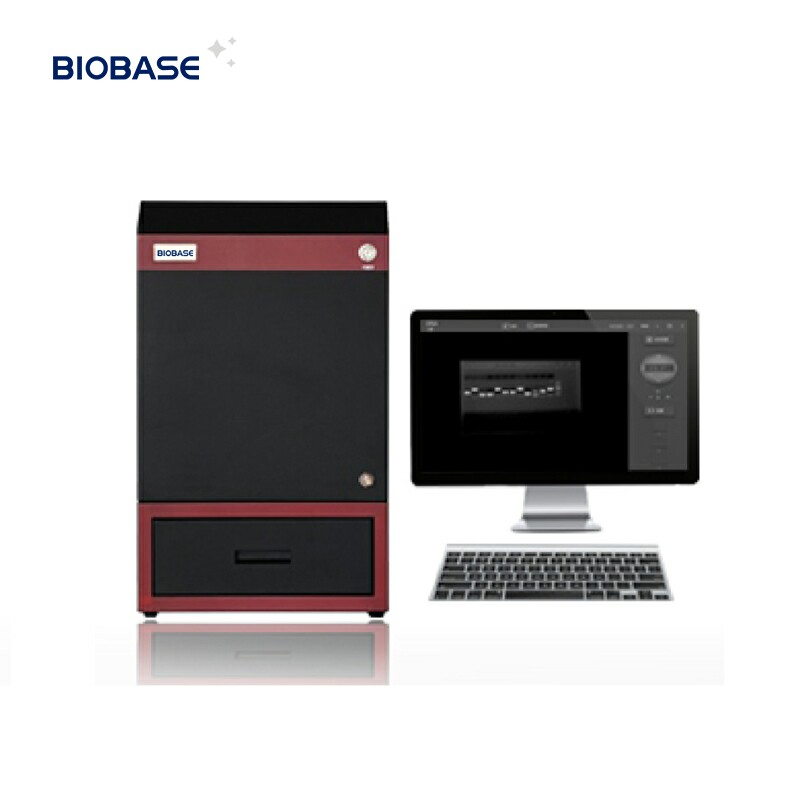

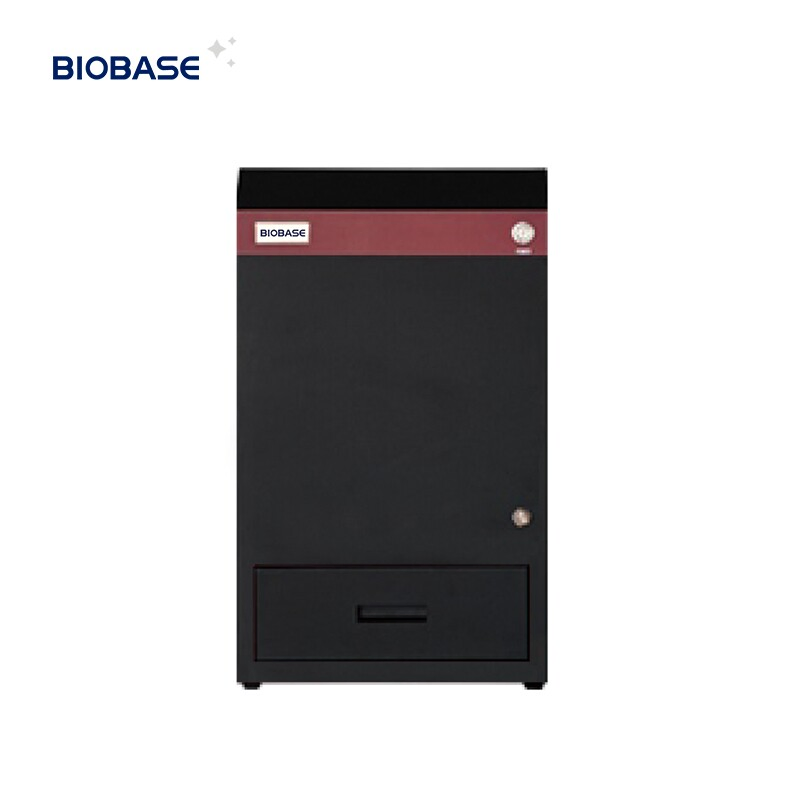

The Automatic Gel Imaging and Analysis System is a highly integrated and fully automated solution. The system interface is simple and practical, featuring a main interface with shooting buttons and time control to guide the user. It is extremely easy to operate, requiring no manual or tedious debugging.

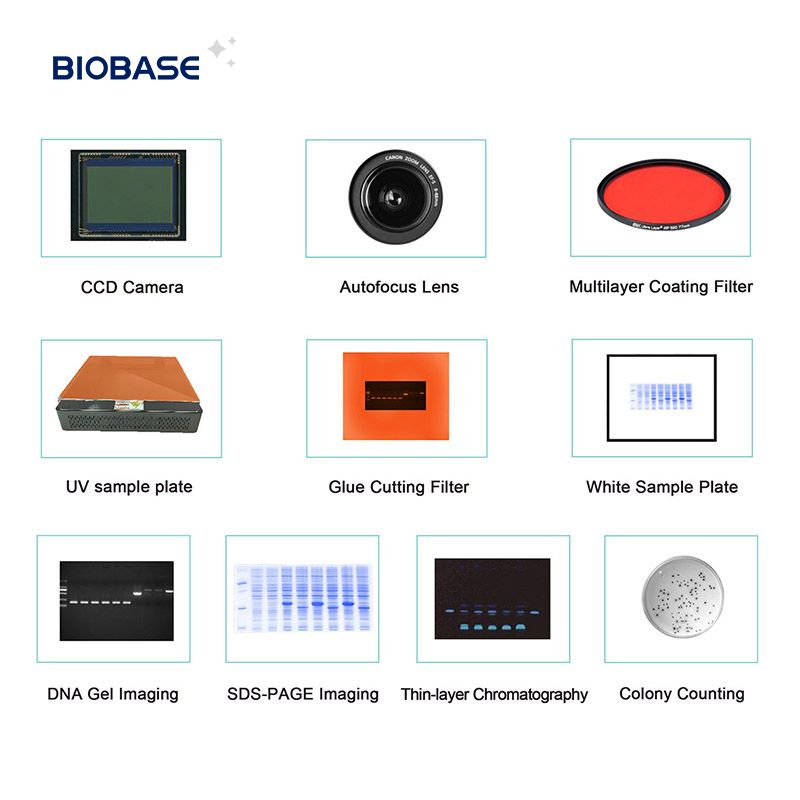

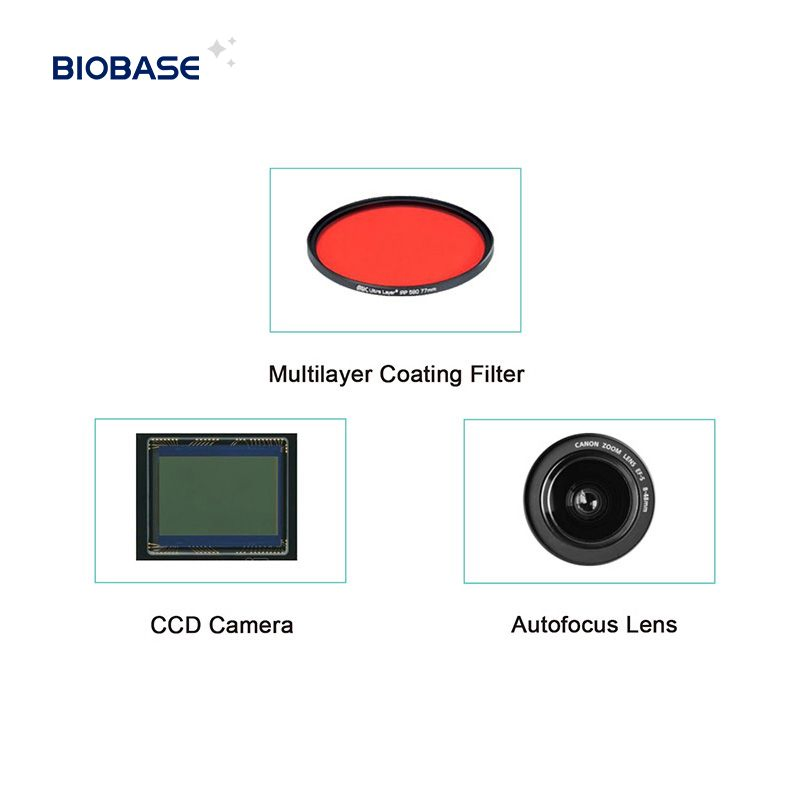

High-resolution CCD camera with high sensitivity and automatic focus.

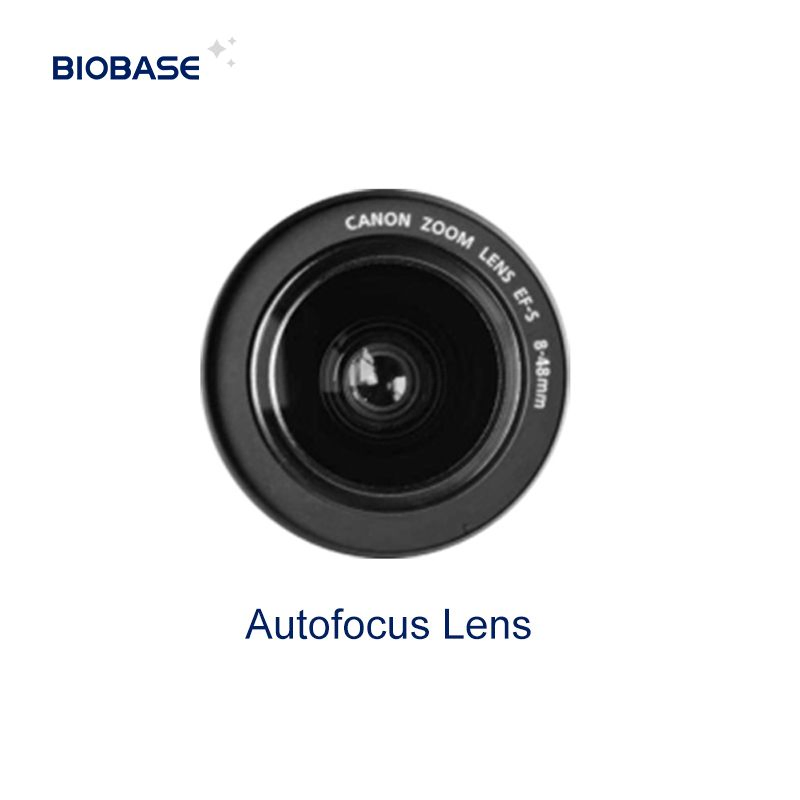

High performance 6x zoom lens and specialized filter for nucleic acid dye.
Specialized overlay glue cutting filter that prevents UV and blue light damage.
Works effectively under strong light conditions; no dark room required.
Compatible with various fluorescent dyes: EB, SYBR Gold, SYBR Green, Gel Red, Texas Red, etc.
| Effective Pixels | 1280*1024 |
|---|---|
| Pixel Density | 10 bit |
| Pixel Size | 5.4*5.4μm |
| Resolution | 1.4 megapixels |
| S/N Ratio | 56db |
| Sensitivity | Detect double chain DNA of EB staining below 20pg |
| Camera | Low illumination and high resolution digital CCD |
| Zoom Lens | F=1:1.2, 2/3 inch 6 times zoom lens |
| UV Transmission Area | 250*200mm |
| Visible Light Area | 250*210mm |
| Transmission Wavelength | 302nm |
| Output | RS232 interface |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| External Size | 470*405*820mm |
